Contents
- DVR 5 in 1 X-Security
- Mouse
- 12VDC Power supply

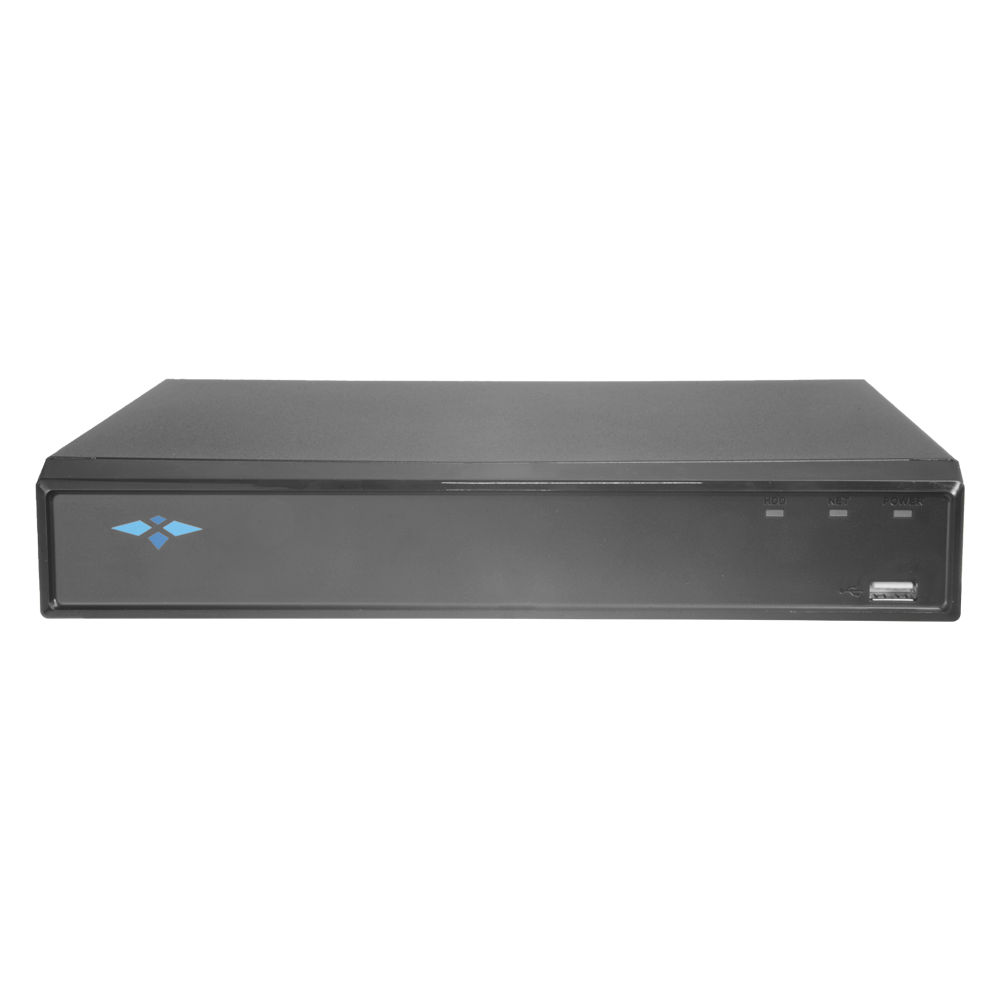

XS-XVR6108ASM-4KL-2AI
211,42 €
227,33 €
227,33 €
DVR 5n1 X-Security - 8 CH HDTVI/HDCVI/AHD/CVBS (4K) + 8 IP (8Mpx) - Alarms : Audio over coaxial - Resolution 4K (7FPS) - 2 CH facial recognition - 8 CH Human and vehicle recognition
Description
- X-Security
- Mini DVR 5n1
- 8 CH video HDTVI/HDCVI/AHD/CVBS / 8+8 IP / 8 CH audio
- H.265+/H.265/H.264+/H.264
- Resolution 4K (7FPS) or 6Mpx (10FPS) or 5Mpx (12FPS) 4K-N, or 4MP/3MP (15FPS) 4M-N/1080P/720P/960H/D1/CIF or (25/30FPS) [%VAR%] [%VAR%]
- PTZ Control (RS485/Coaxial)
- Audio over coaxial
- Alarms
- HDMI Full HD, VGA & CVBS Outputs
- 2 CH comparison of face
- Human and Vehicle Recognition (Available for 8 CH coaxial video)
- Mouse
- 2 USB Ports
- Space for 1 HDD
- Compact size
Specifications
| Brand | X-Security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 16 IP Channels (8Mpx), replacing all the BNC channels |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Video / audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | HDMI: 4K, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Total bandwidth | 128 Mbps |
| Coding | All channel: 4K(1 fps–7 6MP(1 fps–10 fps); 5MP(1 fps–12 4K-N, fps); 4MP/3MP(1 fps–15 4M-N/1080P/720P/960H/D1/CIF (1 fps–25/30 [%VAR%] [%VAR%] fps); [%VAR%] [%VAR%] fps) |
| Dual-Stream encoding | 960H (1 fps–15 fps); D1/CIF(1 fps–25/30 [%VAR%] fps) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Audio inputs | 8 BNC, 8 RCA channels |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Alarms | 8 input / 3 relay |
| Video analysis | IVS: Tripwire | Area intrusion | Abandoned object | Face detection IP Mode, Face Recognition and IVS cannot be enabled at the same time |
| Facial recognition | Up to 2 analog channels for live face comparison |
| Intelligent motion detection | Up to 8 channels capable of classifying targets amongst humans and vehicles |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network |
| Internal memory | 1 SATA HDD 3.5" of up to 16 TB (not included) |
| Communication | RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power | DC 12V / 2A |
| Dimensions / Weight | 55 (H) x 325 (W) x 256.6 (D) mm / 1.2 Kg |
