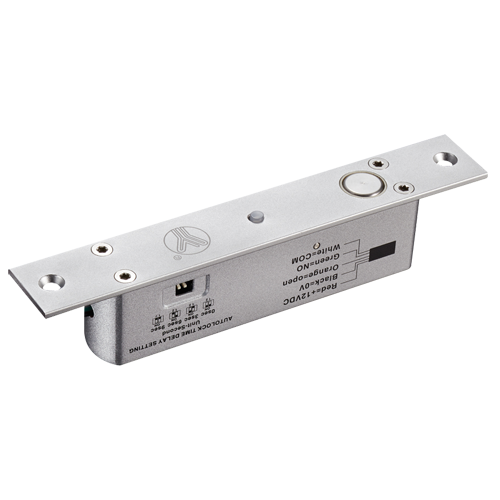

YB-200-LED
36,41 €
40,45 €
40,45 €
Electromechanical safety lock - Fail Safe (NC) opening mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Made of aluminum
Description
Electro-mechanical Piston Security Lock (Bolt)
NC Normally Closed (Fail Safe)
Timer with Delay of 0/3/6/9 seconds
Open door signal
Applicable in Fire protection systems
Installation in Wooden, Metal, Glass and Fire doors
12 VDC
Specifications
| Mounting | Built-in |
| Opening mode | Fail Safe (NC) |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 Kg |
| Output signal | Opening mode, NO/ COM |
| Power | DC 12 V / 850/150 mA start/standby |
| Plate dimensions | 30 (D) x 190 (H) x 39 (W) mm |
| Dimensions of the socket | 25 (D) x 95 (H) x 3 (W) mm |
| Weight | 600 g |
| Temperature | -40º C ~ +30º C |
