Contents
- Lock
- Electromagnetic strike with sensor
- Installation material (Frames, screws, template)
- Installation manual

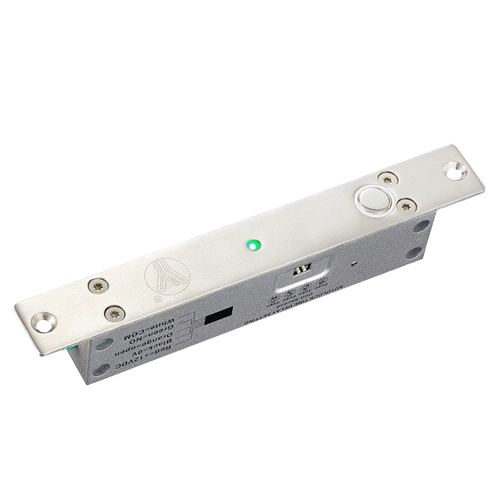

YB-500A-LED
38,23 €
41,11 €
41,11 €
Electromechanical safety lock - Fail Safe (NC) opening mode - Holding force 1000 kg | Door sensor - Programmable self-closing - Selectable opening time - Stainless steel SUS304
Description
- Electro-mechanical Piston Security Lock (Bolt)
- NC Normally Closed (Fail Safe)
- Timer with Delay of 0/3/6/9 seconds
- Open door signal
- Applicable in Fire protection systems
- Installation in Wooden, Metal, Glass and Fire doors
- 12 VDC
- Made in aluminum
Specifications
| Mounting | Built-in |
| Opening mode | Fail Safe (NC) |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 Kg |
| Power | DC 12 V / 960/180 mA start/standby |
| Open sensor | Integrated LED indicator, exit indicator. |
| Entrance profile | Narrow 25mm |
| Plate dimensions | 192 (H) x 25 (W) x 37 (D)mm |
| Dimensions | 90 (H)x 25 (W) x 2 (H) mm |
| Weight | 680 g |
| Temperature | -40º C ~ +60º C |
