Contents
- Electric lock
- Installation material
- User instructions

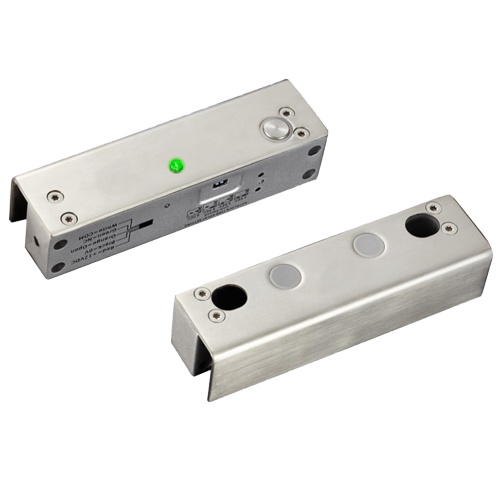

YB-500U
44,33 €
47,67 €
47,67 €
Electric security lock - Fail Safe (NC) opening mode - Holding force 1000 kg | Door sensor - Programmable self-closing - Selectable opening time - Stainless steel SUS304
Description
- Electric bolt safety lock
- NC operation (Fail Safe)
- Timer with adjustable delay
- Door sensor
- Mounting on wood, metal and glass doors
- Suitable for frameless glass doors
- Made of stainless steel SUS304
- 12 VDC
Specifications
| Mounting | Surface |
| Opening mode | Fail Safe (NC) |
| Type of opening | Bidirectional |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 kg |
| Power | DC 12 V / 960 mA máx. (start) / 180 mA max. (rest) |
| Door sensor | NC / COM |
| Plate dimensions | 41.6 (W) x 150 (H) x 36.5 (Fo) mm (without bolt unfolded) |
| Dimensions of the socket | 41.6 (W) x 150 (H) x 36.5 (D) mm |
| Temp. operating | -40º C ~ +60º C |
| Weight | 1.4 kg |
