Contents
Holder
Magnetisation plate
Installation material
User instructions

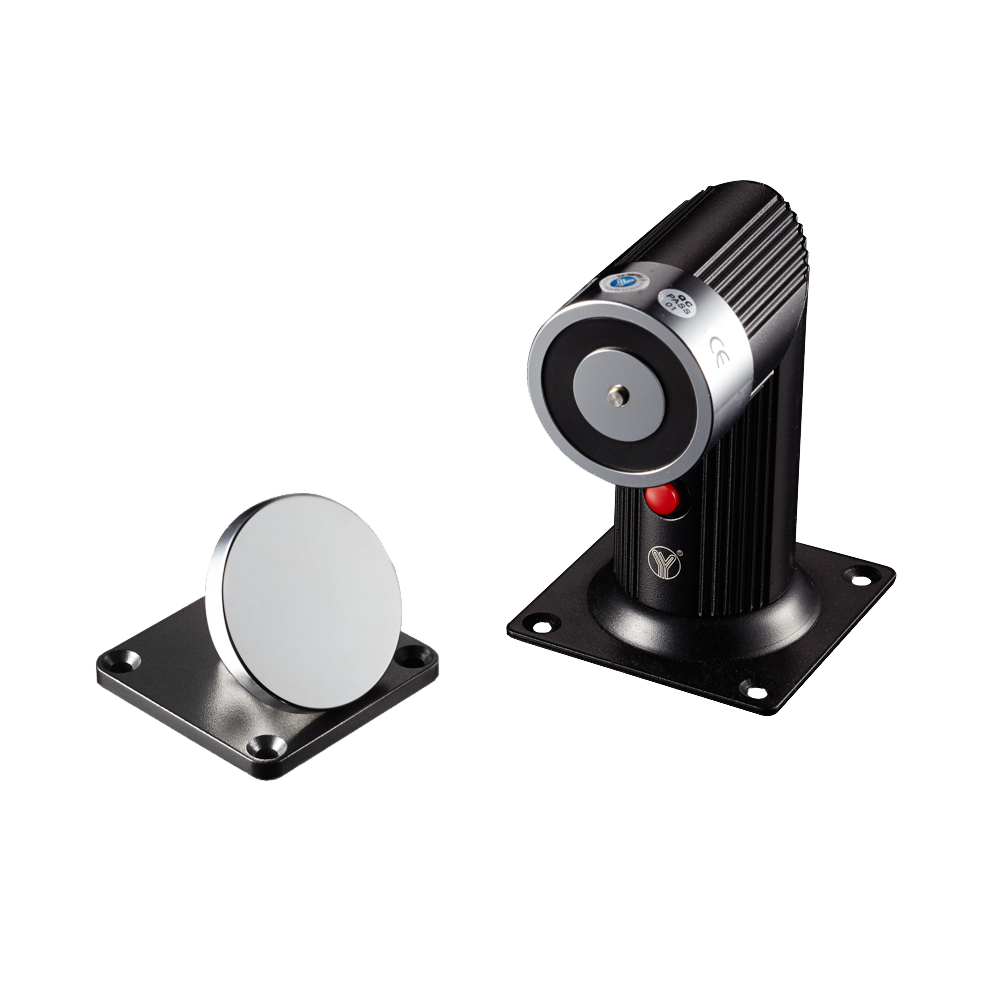

YD-606
40,05 €
44,50 €
44,50 €
Electromagnetic holder - For single doors - Retention force 50 Kg - Manual door release button - Power supply 12/24V DC - Especially for floor mounting
Description
Emergency door holder
Holding force up to 50Kg
Special for floor installation
Manual close button
Suitable for single and double doors
DC12/24V
Specifications
| Door type | Simple, 1 folding and fire doors |
| Closing mode | Relay signal or manual opening button |
| Retention force | 50 Kg |
| Power | DC 12/24 V / 240/120 mA (selection by jumper) |
| Signalling | Door status sensor NO/NC |
| Dimensions of Magnetic Plate | 65 (H) x 65 (W) x 41 (D) mm (Retaining steel 54 mm) |
| Dimensions of Holder | 120 (D) x 80 (H) x 80 (W) mm |
| Weight | 1.05 kg |
| Temperature | 0º C ~ +55º C |
