Contents
- Electromechanical lock
- Installation material
- User instructions

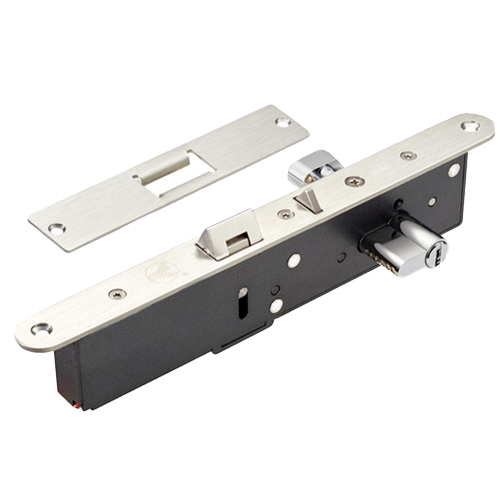

YML-650B
74,92 €
80,56 €
80,56 €
Electromechanical safety lock - Fail Secure and Fail Safe opening mode - Holding force 500 kg | Door sensor - Bidirectional opening - Stainless steel SUS304 - European cylinder included with keys
Description
- Electromechanical security lock with slide locking device
- European cylinder with keys included
- NO (Fail Secure) and NC (Fail Safe) operation
- Door sensor
- Mounting on wood, metal and glass doors
- Suitable for narrow frame doors
- Made of stainless steel SUS304
- 12-24 VDC
- Bidirectional opening
Specifications
| Mounting | Built-in |
| Opening mode | Fail Secure (NO) and Fail Safe (NC) |
| Type of opening | Bidirectional |
| Retention force | 500 kg |
| Cylinder | European |
| Power | DC 12-24 V / 300 mA máx. |
| Door sensor | NC / NO / COM |
| Entrance profile | 30 mm |
| Plate dimensions | 25 (W) x 275 (H) x 51.9 (D) mm |
| Dimensions of the socket | 30 (W) x 150 (H) x 1.5 (D) mm |
| Temp. operating | -40º C ~ +60º C |
| Weight | 1.4 kg |
