Electrical door openers

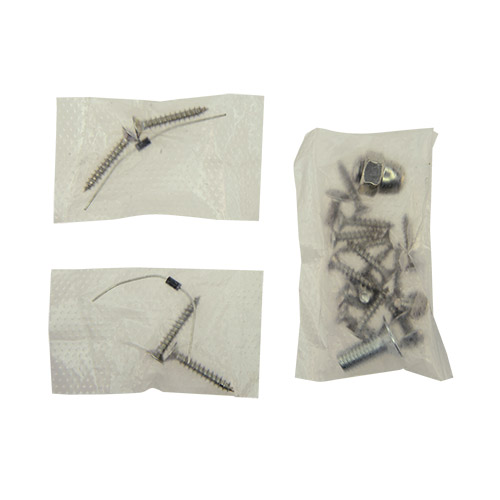

Installation material

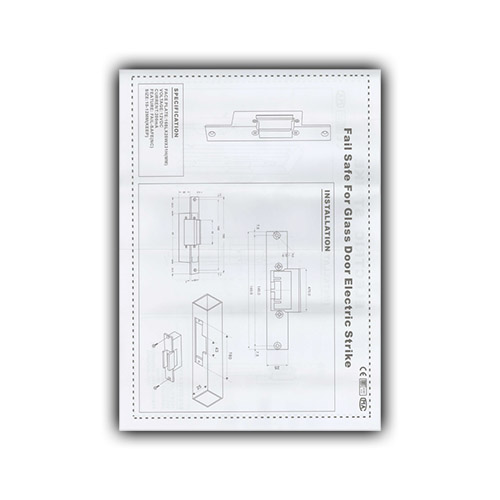

User instructions
YS-132NC
20,03 €
22,25 €
22,25 €

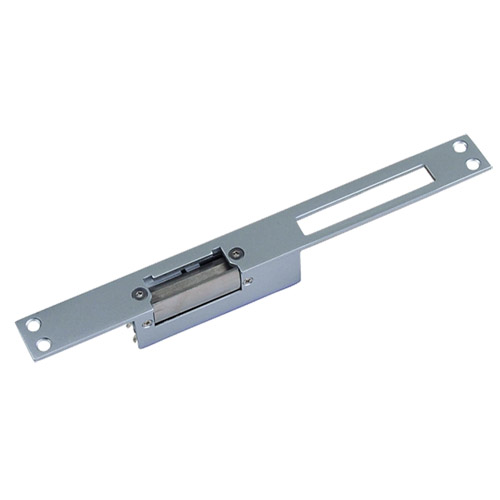

Electrical door openers - For single doors - Fail Safe (NC) opening mode - Holding force 500 kg - Power supply DC 12V - Recessed mounting | Socket
Description
Electrical door openers
Fail Safe (NC) operation
Mounting on wood and metal doors
With lock socket
Stainless steel
Load resistance 500 kg
12 VDC
Specifications
| Mounting | Built-in |
| Opening mode | Fail Safe (NC) |
| Functions | Bolt hole for deadbolt |
| Retention force | 500 Kg |
| Power | DC 12 V / 200 mA máx. |
| Dimensions | 31 (D) x 250 (H) x 25 (W) mm |
| Weight | 400 g |
| Temperature | -10º C ~ +55º C |
