Contents
- ZKTeco Access Controller
- Mounting material
- User instructions

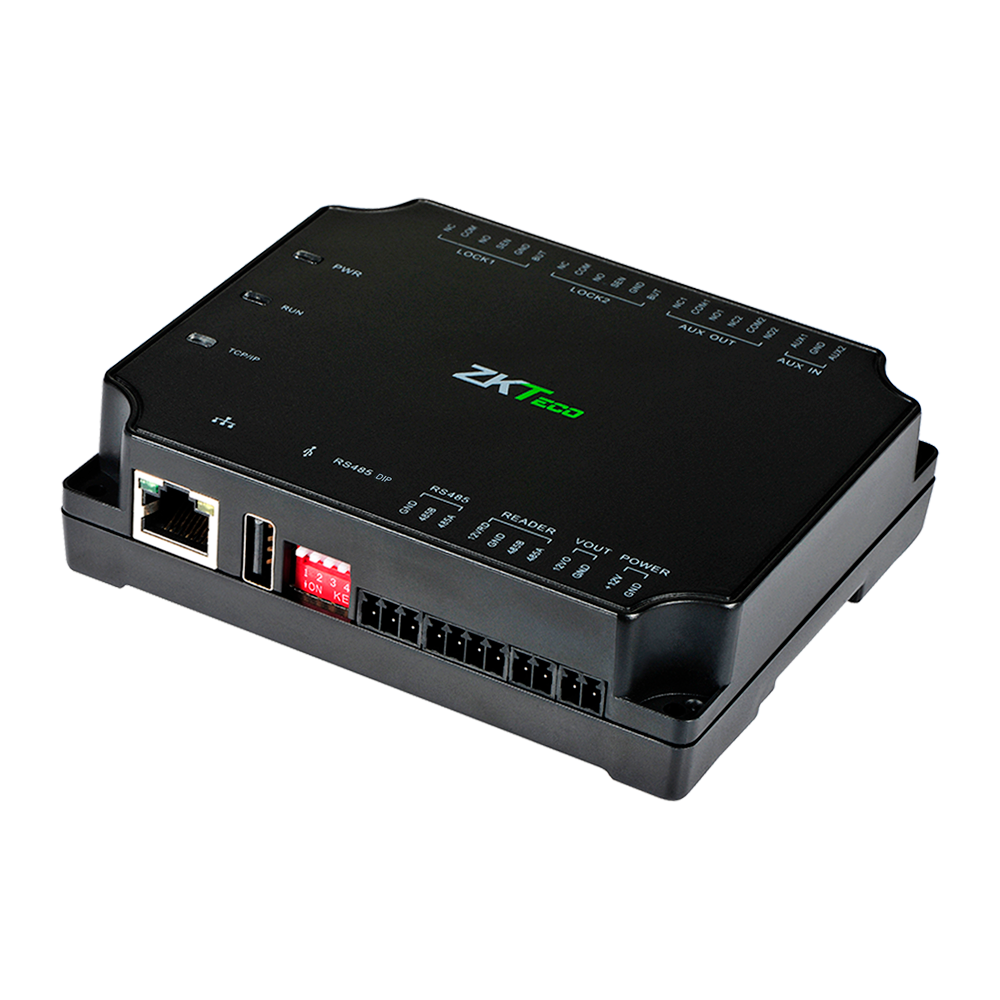

ZK-C2-260
113,66 €
122,22 €
122,22 €
RFID access control panel - Access with card or password - TCP/IP | Connection to slave controller - 1 OSDP Entry ZKTeco | Aux. - Relay output for 2 gates and 2 aux outputs. - ZKBioAccess software 5 doors included
Description
- ZKTeco
- RFID access control panel
- Management of 2 doors
- Capacity 30.000 users and 200.000 records
- Supports up to 4 card readers by OSDP ZKTeco
- Compatible with ZKTeco OSDP readers
- TCP/IP communication and OSDP ZKTeco
- Input of 2 push buttons, 2 door sensors and 1 auxiliary input
- 2 relay outputs and auxiliary 2 outputs
- Relay configuration NO/NC
- ZKBioAccess software 5D included
- Connection of up to 8 controllers ZK-SRB-DM10 slaves with RS485 connection
Specifications
| Brand | ZKTeco |
| Model | CON-C2-260 |
| Capacity | Up to 30.000 users |
| Records | 200.000 registers |
| Identification modes | Card and/or password |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | TCP/IP | RS485 for slave connection | OSDP ZKTeco for reader connector |
| Outputs | 2 x relay output, 1 x auxiliary output, RS485 for communication with ZK-SRB-DM10 |
| Inputs | 2 x door sensor, 2 x open button, OSDP ZKTeco (up to 4 readers), 1 x auxiliary entry |
| Compatible readers | RS485 ZKTeco of cards and OSDP ZKTeco of cards |
| Secondary controllers | Connection of up to 8 secondary controllers ZK-SRB-DM10 via RS485 |
| Software | ZKBioAccess IVS |
| Power | DC 9.6 ~ 14.4 V / 3 A max. | Locks not powered with controller |
| Temp. operation | -10º C ~ +50 ºC |
| Dimensions | 117 (W) x 97 (H) x 32 (D) mm |
